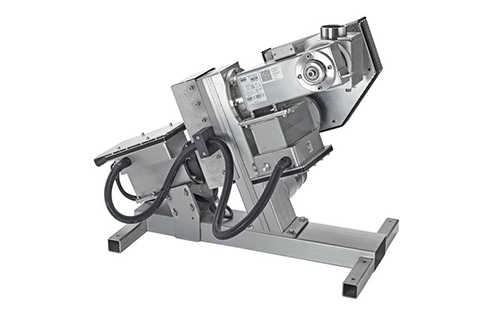

Multi Directional Drive II / DMX / 02

Order no.: 50702
Power consumption: 53 W

Unique and limitless in its motion: The multidirec- tional drive sets a new standard in water design.
Thanks to its pivoting range of 200 degrees on the x-axis and 140 degrees on the y-axis, the mobility of the Multi Directional Drive hardly knows any limits and allows countless impressive water effects. It is suitable for a variety of nozzles such as precision or fan nozzles.

Product characteristics at a glance
• Multidimensional Drive, suitable for different nozzle patterns (Comet Prec 20-20 Silver or fan jet 10-20-6 Silver)
• Pivoting range up to 200° on the x-axis and 140° on the y-axis
• 2″ thread nozzle, 2 ½” thread water
• Robust stainless steel construction
• Controllable by OASE RDM-DMX controller (WECS II) (not included in scope of delivery)
• Energy efficient motor, 24 V/ DC

Warranty: 1 year

Specifications

Order no.: 50702
Dimensions: 780L x 420W x 620H mm
Nominal voltage: 24V/DC
Power consumption: 53 W
Nominal current: 2.2 A
Max. operation pressure: 3.5 bar
Protection class: IP 68
Power connection: with box
RDM-DMX connection: with box
Material : stainless steel 1.4571 (AISI 306Ti)
Weight: 45 kg


Product Video

Download Documents

Brochure : Multi Directional Drive II / DMX / 02
