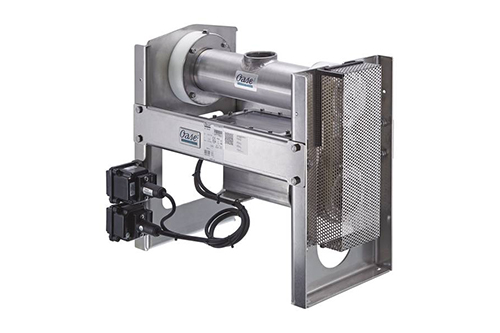

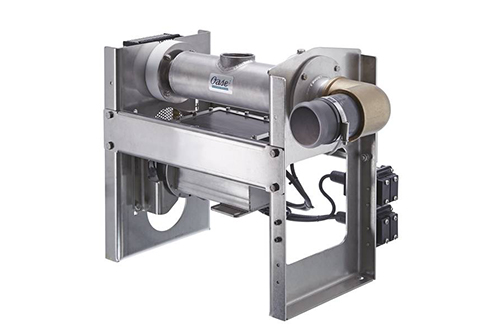

Swivel DMX 02

Order no.: 50342
Power consumption: 36 W

SKU: 50342 Category: Tags: ,

The swivel creates swivelling and impressive water effects.These water effects are formed by combining this single dimensional drive with a pivoting range of max. 180° on the y-axis and nozzles (Comet Prec 20-20 E, Finger Nozzle 7-15 E or fan jet 10-20-6 E)

Product characteristics at a glance
• Single dimensional drive, suitable for fan nozzles as well as comet nozzles (Comet Prec 20-20 E or fan jet 10-20-6 E)
• Pivoting range of max. 180°
• 2″ thread nozzle, 2½” thread water
• Robust stainless steel construction
• Controllable by OASE DMX devices (not included in scope of delivery)
• Energy efficient motor, 24 V/ DC
• Suitable for fresh water and pool water application.
• Sea water Swivel on request.

Warranty: 1 year

Specifications

Order no.: 50342
Dimensions: 620mmL x 450mmW x 200mmH
Nominal  voltage: 24V/DC
Power consumption: 36 W
Nominal current: 1.5 A
Max. operation pressure: 2 bar
Protection class: IP 68
Power connection: with box
RDM – DMX connection: with box
Material: stainless steel 1.4301 (AISI 304)
Weight: appr. 25 kg


Download Documents

Brochure : Swivel DMX 02
