Water hemisphere H 3500/210 E

Order no.: 51763
Dimensions: 3500Øx 2350H(mm)

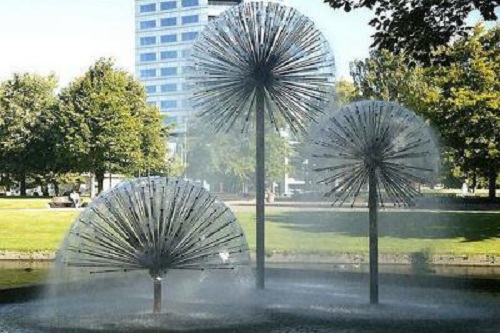

The artistic water pattern that is generated by the sphere effect nozzles requires a lot of space in order to unfold its enchanting effect. It lends any location a very special attractive force, even from a distance.

The fountain attachments are primarily made of stainless steel which makes them attractive sculp-tures even if they are not spraying water.

However, their special flair unfolds once the fine water veil escaping from the uniformly arranged nozzles converges to form a gentle sphere.

Depending on size the spheres consist of a different number of nozzles. Operation of the spheres and hemispheres is even possible in strong wind in spite of the relatively fine water veil.

Product characteristics at a glance
• Sculptural, amazing water pattern
• Decorative stainless steel sculpture
• Extensively wind stable
• Water level independent

Warranty: 2 years

Specifications

Order no.: 51763
Dimensions: 3500 Ømm x 2350 Hmm
zd: 210 pieces
DWB: 2310 l/min
DDB: 1.3 bar
MBD: 5000 mm
DD: 1 x DN 80 mm
d1: 3500 mm
d2: 160 mm
d3: 1000 mm
d4: 22 mm
h1: 100 mm
h2: 500 mm
h3: 600 mm
h4: 2350 mm
x1: 900 mm
x2: 200 mm
Material: Tombac / stainless steel 1.4301 (AISI 304)
Weight: 650 kg


Download Documents

Brochure: Water hemisphere H 3500/210 E
