Water hemispheres H 6000/248 E

Order no.: 51764
Dimensions: 6000Øx 3650H(mm)

The artistic water pattern that is generated by the sphere effect nozzles requires a lot of space in order to unfold its enchanting effect. It lends any location a very special attractive force, even from a distance.

The fountain attachments are primarily made of stainless steel which makes them attractive sculptures even if they are not spraying water.

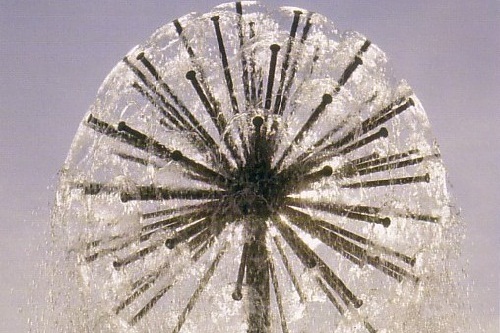

However, their special flair unfolds once the fine water veil escaping from the uniformly arranged nozzles converges to form a gentle sphere.

Depending on size the spheres consist of a different number of nozzles. Operation of the spheres and hemispheres is even possible in strong wind in spite of the relatively fine water veil.

Product characteristics at a glance
• Sculptural, amazing water pattern
• Decorative stainless steel sculpture
• Extensively wind stable
• Water level independent

Warranty: 2 years

Specifications

Order no.: 51764
Dimensions: 6000Ø x 3650H(mm)
zd: 248 pieces
DWB: 3720 l/min
DDB: 1.5 bar
MBD: 9000 mm
DD: 3 x DN 100 mm
d1: 6000 mm
d2: 220 mm
d3: 1000 mm
d4: 22 mm
h1: 125 mm
h2: 500 mm
h3: 650 mm
h4: 3650 mm
x1: 900 mm
x2: 200 mm
Material: Tombac / stainless steel 1.4301 (AISI 304)
Weight: 1800 kg


Download Documents

Brochure: Water hemispheres H 6000/248 E
