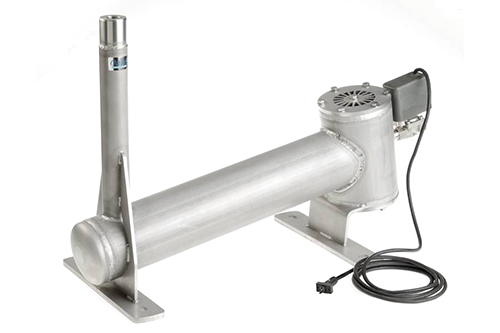

Air Nozzle 20E horizontal

Order no.: 58904a
Nominal current: 0.46 A

The compressed air driven Air Nozzle is controlled by DMX with the DMX Underwater Switch 24 V DC/DMX/02.

The use of compressed air leads to an optimized use of energy. With the DMX capable Underwater Switch 24 V DC / DMX/02 system costs can be further reduced to 50 %.The different designs provide solutions for shallow water applications. There are four standard Air Nozzles:
Air Nozzle 15 E vertical/01 (58904)
Air Nozzle 20 E vertical/01 (58904)
Air Nozzle 20 E horizontal/01 (58904)
Air Nozzle 24 E horizontal/01 (58904)

System integration Generally Air Nozzles are connected to a compressed air piping system where the pipe itself acts as the air reservoir. The pipe is almost continuously replenished by a compressor. Therefore no additional air reservoir is required to be connected to the Air Nozzle. The volume of the pipe and the standard pressure should be chosen in such way that after a shot with all nozzles the residual pressure doesn’t fall below 90% of the default value. In more complex supply systems the target pressure can be varied in order to achieve different jet heights.

Water Level & Refill behavior For a long term stable operation, it is important to keep the water level constant.This is because the fill level and the replenishment time depends on the water level. In this sense the best surrounding for such water features are water bodies in which the water level is determined by a dam or an overflow.

Product characteristics at a glance
• Compact, robust stainless steel Air Nozzle
• IP 68 in 24 voltage technology for underwater use
• Pluggable, easy to install and to connect through underwater OASE technology
• Short refill time up to 15 shots per minute
• For fountain heights up to 20 m (higher fountain heights on request)
• Sea water Air Nozzle on request

Warranty: 1 year

Specifications

Order no.: 58904a
Dimensions: 758mmL x 300mmW x 483mmH
Shooting frequency / water refill time: 4-10 second
Amount of water per shot: 7 l
Nozzle diameter: 20 mm
Min. / Max. water level: 330 – 430 mm
Max. air pressure: 3 bar
Air inlet dia.: ½ inch
Water jet height up to: 15 m
Voltage (solenoid valve): 24 V/DC
Nominal current (solenoid valve): 0.46 A
Material: stainless 1.4571 (AISI 304)
Power cable: 7.50 m
Weight: 14.5 kg
