FiltoClear Set 3000

22,050,000

Order no.: 50864

Product characteristics
Including OASE Clear Water Guarantee
Filter technology simply selected and ready for connection

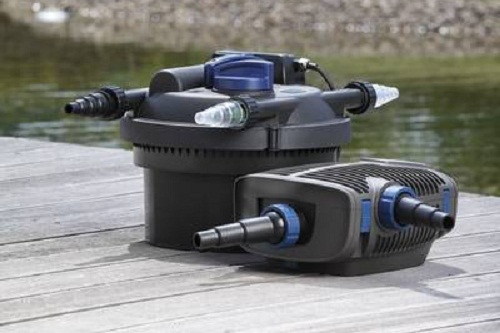

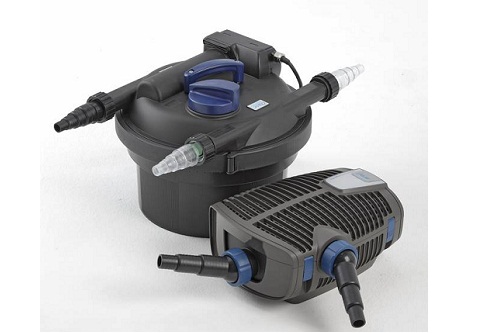

Complete set includes: FiltoClear pressure filter incl. UVC clarifier and matching AquaMax Eco -Premium filter and watercourse pump
FiltoClear: High filtration capacity in a small space with patented cleaning function
AquaMax Eco Premium: Extremely energy efficient displacement
Ideal for supplying higher elevated watercourses and architectural pools
Integrated in the natural environment, thanks to possibility of in ground installation and the sandstone – look of the cover

Warranty: 1 year

Thông số kĩ thuật

FiltoClear 3000

Order no.: 55997
Dimensions(Ø x H): 380×310 mm
Rated voltage: 230 V / 50 Hz
Power consumption: 14 W
Power cable length: 5 m
Net weight: 5,58 kg
UVC power: 9 W
Number of blue filter foams: 2 ST
Number of red filter foams: 1 ST
Pollutant level indicator: Yes
Temperature display: No
Connection inlet: 19 / 25 / 32 / 38 mm
Connection inlet: 3/4″, 1″, 1 1/4″, 1 1/2″
Connections, outlet: 19 / 25 / 32 / 38 mm
Connections, outlet: 3/4″, 1″, 1 1/4″, 1 1/2″
Connections, sludge discharge: 19 / 25 / 32 / 38 mm
Connections, sludge discharge: 3/4″, 1″, 1 1/4″, 1 1/2″
Max. flow rate: 4000 l/h
Max. operating pressure: 0,2 bar
Suitable for ponds up to max.: 3 m3
Suitable for ponds with fish stock: 1,5 m3

Aquamax Eco Premium 4000

Order no.: 50734
Dimensions(LxWxH): 340x280x165 mm
Rated voltage: 220-240 V/ 50/ 60 Hz
Power consumption: 10-35 W
Power cable length: 10 m
Net weight: 5,3 kg
Max. flow rate: 66 l/Min
Max. flow rate: 4000 l/h
Max. head height: 3,3 m
Connection pressure-side: 50 mm
Connection pressure-side: 2″
Connection sunctions-side: 50 mm
Connection sunctions-side: 2″
Connection for hoses: 25/ 32/ 38 mm
Connection for hoses: 1″, 1 1/4″, 1 1/2″
Filter intake surface: 1000 cm2
Coarse debris displacement max.: 10 mm
Electronically adjustable: Yes
Setup type: Can be setup underwater & dry



Pictures

Download Documents

Brochure: Filto Clear Set 3000

Manual: Filto Clear Set 3000
