Product characteristics
Including OASE Clear Water Guarantee
Filter technology simply selected and ready for connection

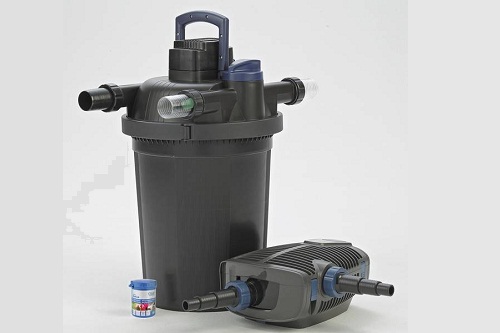

Complete set includes: FiltoClear pressure filter incl. UVC clarifier and matching AquaMax Eco -Premium filter and watercourse pump
FiltoClear: High filtration capacity in a small space with patented cleaning function
AquaMax Eco Premium: Extremely energy efficient displacement
Ideal for supplying higher elevated watercourses and architectural pools
Integrated in the natural environment, thanks to possibility of in ground installation and the sandstone – look of the cover
Warranty: 1 year
Specifications
FiltoClear 16000
Order no.: 51247
Dimensions (Ø x H): 380×630 mm
Rated voltage: 220 – 240 V / 50/60 Hz
Power consumption: 24 W
Power cable length: 5 m
Net weight: 7,9 kg
UVC power: 24 W
Number of blue filter foams: 4 ST
Number of red filter foams: 3 ST
Pollutant level indicator: Yes
Temperature display: No
Connection inlet: 38 / 50 mm
Connection inlet: 1 1/2″, 2″
Connections, outlet: 38 / 50 mm
Connections, outlet: 1 1/2″, 2″
Connections, sludge discharge: 38 / 50 mm
Connections, sludge discharge: 1 1/2″, 2″
Max. flow rate: 10000 l/h
Max. operating pressure: 0,2 bar
Suitable for ponds up to max.: 16 m3
Suitable for ponds with fish stock: 8 m3
Suitable for ponds with koi: 4 m3
AquaMax Eco Premium 10000
Order no.: 51078
Dimensions(LxWxH): 340x280x165 mm
Rated voltage: 220 – 240 V / 50/60 Hz
Power consumption: 19 – 88 W
Power cable length: 10 m
Net weight: 5,3 kg
Max. flow rate: 166 l/Min
Max. flow rate: 10000 l/h
Max. head height: 4,7 m
Connection pressure-side: 50 mm
Connection pressure-side: 2″
Connection sunctions-side: 50 mm
Connection sunctions-side: 2″
Connection for hoses: 25 / 32 / 38 / 50 mm
Connection for hoses: 1″, 1 1/4″, 1 1/2″, 2″
Filter intake surface: 1000 cm2
Coarse debris displacement max.: 10 mm
Electronically adjustable: Yes
Setup type: Can be setup underwater & dry
