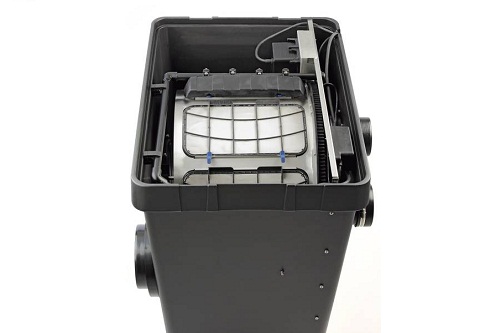

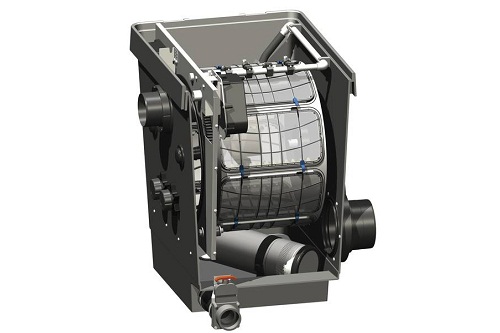

ProfiClear Premium DF-L pump-fed EGC

148,400,000

Order no.: 47003
Size: 830L x 600W x 820H

Product characteristics
Automatic self cleaning
Intelligent high end module filter system for Koi ponds and other large bodies of water to 260 m³
Outstanding filter capacity with intelligent control functions
Intelligent self cleaning function for unique maintenance free operation (drum filter module)
Highly effective decomposition of pollutants and nutrients, thanks to professional filter media and moving bed process (MovingBed)
Flexible adaptation of the filter system to individual requirements (individual module)
Mature, professional technology with more than 3 years of development time
Innovative and reliable product »made in Germany*« (*except pressure pump)

Warranty: 1 year

Specifications

Order no.: 47003
Dimensions(L x W x H): 830x600x820 mm
Net weight: 74 kg
Number of sieve elements: 8 ST
Material: GRP Duroplast/stainless steel
Number of inlets: 2 ST
Connection inlet: 50 mm
Number of outlets: 2 ST
Connections, outlet: DN 150
Connections, sludge discharge: DN 110
Min. flow rate: 10000 l/h
Max. flow rate: 25000 l/h
Connection to: Bitron C 72 – 110 W
Installation height above water level: 40 cm
Type of use: Pump fed system
Other: Pollutant discharge incl. slide valve

Pictures

Videos



Download Documents

Brochure: ProfiClear Premium DF-L pump-fed EGC

Manual: ProfiClear Premium DF-L pump-fed EGC
