Water sphere 3500/380 E

Order no: 51760
Dimensions: 3500Ø x 5850H (mm)

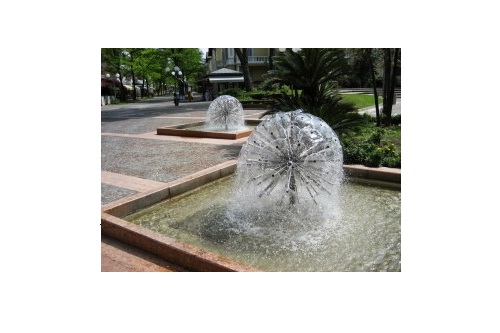

The artistic water pattern that is generated by the sphere effect nozzles requires a lot of space in order to unfold its enchanting effect. It lends any location a very special attractive force, even from a distance.

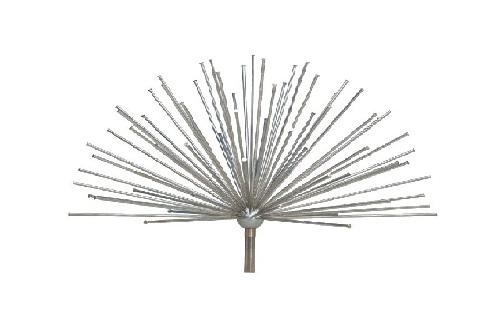

The fountain attachments are primarily made of stainless steel which makes them attractive sculp-tures even if they are not spraying water.

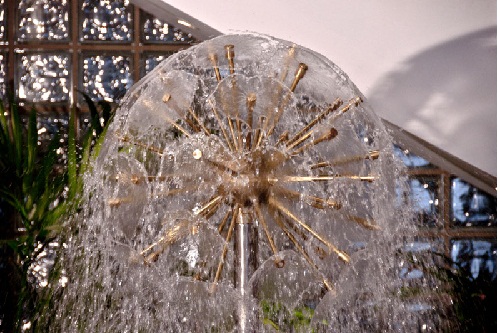

However, their special flair unfolds once the fine waterveil escaping from the uniformly arranged noz-zles converges to form a gentle sphere.

Depending on size the spheres consist of a differ-ent number of nozzles. Operation of the spheres and hemispheres is even possible in strong wind in spite of the relatively fine water veil.

Product characteristics at a glance
• Sculptural, amazing water pattern
• Decorative stainless steel sculpture
• Extensively wind-stable
• Water-level independent

Warranty: 2 years

Specifications

Order no.: 51760
Dimensions: 3500Ø x 5850H(mm)
zd: 380 pieces
DWB: 4180 l/min
DDB: 1.6 bar
MBD: 6000 mm
DD: 4 x DN 65 mm
d1: 3500 mm
d2: 160 mm
d3: 1000 mm
d4: 22 mm
h1: 100 mm
h2: 500 mm
h3: 4100 mm
h4: 5850 mm
x1: 900 mm
x2: 200 mm
Material: Tombac / stainless steel 1.4301 (AISI 304)
Weight: 1100 kg


Download Documents

Brochure: Water sphere 3500/380 E
