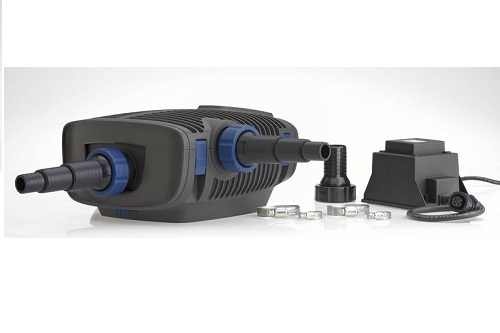

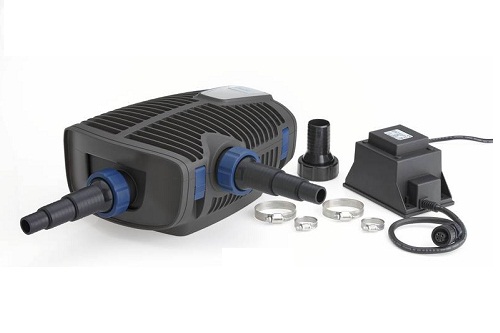

AquaMax Eco Premium 6000/12 V

21,200,000

Order no.: 50730
Power consumption: 55 W

Product characteristics
With safe 12 V technology perfect for implementation in swim ponds and bathing ponds
Outstanding energy balance: Reliable displacement using even less energy
Supplemental, patented connection of filter accessories for debris supply from more distant pond zones
Unique, patented frost protection: Consequently, the pump will not be damaged at temperatures as low as -20°C
Elegant design with clever operating elements
Maximum convenience thanks to ergonomic and easily accessible handles
Plant remains or fish waste to 11 mm in size are displaced
»Environmental Function Control« (EFC by OASE) protects against dry run and blocking
MADE IN GERMANY: Precise and reliable German engineering art at a high level of quality

Warranty: 1 year

Specifications

Order no.: 50730
Dimensions(LxWxH): 340x280x165 mm
Rated voltage (primary, secondary): 230 V / 50 Hz , 12 V / DC
Power consumption: 55 W
Cable length 12 V device: 2.50 (Power unit) + 8.00 m
Net weight: 8,7 kg
Max. flow rate: 100 l/Min
Max. flow rate: 6000 l/h
Max. head height: 3,2 m
Connection pressure-side: 50 mm
Connection pressure-side: 2″
Connection sunctions-side: 50 mm
Connection sunctions-side: 2″
Connection for hoses: 25 / 32 / 38 mm
Connection for hoses: 1″, 1 1/4″, 1 1/2″
Filter intake surface: 1000 cm2
Coarse debris displacement max.: 10 mm
Electronically adjustable: No
Setup type: Can be setup underwater & dry


Download Documents

Brochure: AquaMax Eco Premium 6000/12 V
