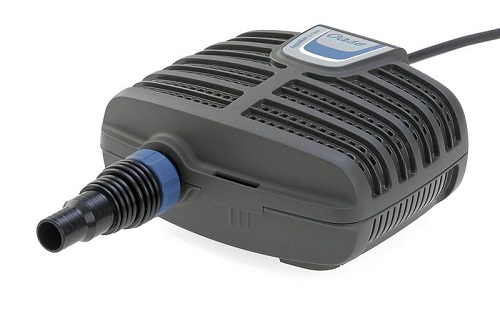

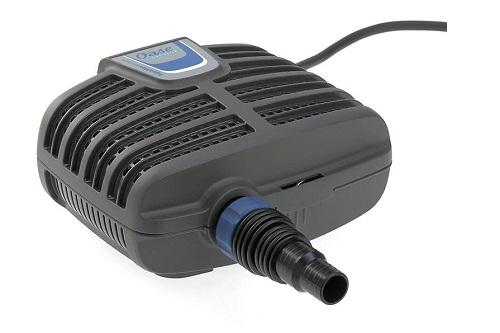

AquaMax Eco Classic 17500


Order no.: 56653
Power consumption: 170 W

Product characteristics
»Environmental Function Control« (EFC by OASE) protects against dry run and blocking
Completely redesigned: The classic – the entry level class of filter and watercourse pumps from OASE
A totally new form: Thanks to organic design, it can be integrated in ponds and watercourses, almost invisibly
Extremely economical: Thanks to its energy efficient motor, the »AquaMax Eco Classic saves power – and money – in operation
Uncomprisingly reliable: With high cleaning force, it pumps pond water and coarse debris particles, up to 8 mm in size into a filter
Suitable for use on swim ponds and bathing ponds (inserted in an exterior pump chamber)
Included in the scope of delivery: Special hose adapter with threaded collar for different hose sizes

Warranty: 1 year


Order no.: 56653
Dimensions(LxWxH): 280x230x130 mm
Rated voltage: 220 – 240 V/ 50 Hz
Power consumption: 170 W
Power cable length: 10 m
Net weight: 5,35 kg
Max. flow rate: 290 l/Min
Max. flow rate: 17400 l/h
Max. head height: 3,7 m
Connection pressure-side: 50 mm
Connection pressure-side: 2″
Connection sunctions-side: 50 mm
Connection sunctions-side: 2″
Connection for hoses: 25 / 32 / 38 mm
Connection for hoses: 1″, 1 1/4″, 1 1/2″
Filter intake surface: 810 cm2
Coarse debris displacement max.: 8 mm
Electronically adjustable: No
Setup type: Can be setup underwater & dry
