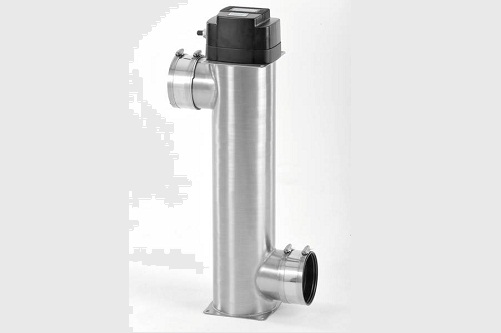

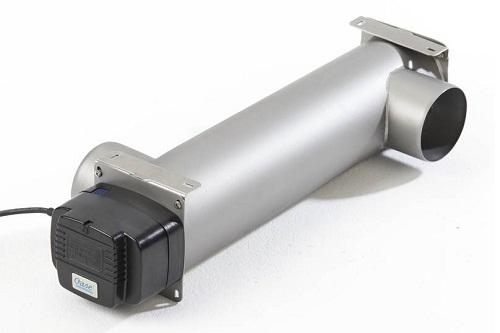

Bitron Gravity 55 W

Order no.: 50946
Power consumption: 55 W

Product characteristics

  • Suitable for ponds to 70 m³
  • Extremely effective elimination of suspended algae and reduction in pathogenic bacteria levels (at 12.5 m³/h) – similar to an immersion UVC
  • 100%, VDE-certified safety; does not cause eye injuries
  • Particularly energy efficient thanks to electronic ballast
  • Unusually effective sterilisation, thanks to ong water contact time in the Bitron
  • Flow-optimised reactor design ensures direct and virtually loss-free UV radiation
  • High-quality V4A stainless steel housing for stability and good reflection rates
  • Extremely easy installation with stainless steel connection elements
  • Flexible connection upstream or downstream of the ProfiClear filter system – also for other gravity fed applications
  • In the event of pond enlargements or increase in koi stock, extension with additional Bitron Gravity UVC devices is possible at any time
  • Visual function check
  • Horizontal or vertical setup possible
  • Incl. 2 x DN 100 quick release couplings, thus particularly easy to install
  • With the adapter set (18127) it is also suitable for pump fed operation

Warranty: 1 year


Order no.: 50946
Dimensions(L x W x H): 700 x 260 x 160 mm
Rated voltage: 220 – 240 V / 50/60 Hz
Power consumption: 55 W
Power cable length: 5 m
Net weight: 6,98 kg
UVC power: 55 W
UVC operating hours meter: No
Number of inlets: 1 ST
Connection inlet: DN 110
Number of outlets: 1 ST
Connections, outlet: DN 110
Max. operating pressure: 0,6 bar
Pump capacity, max.: 30000 l/h
Pump capacity, min.: 5000 l/h
Rec. flow rate (gravity-fed): 12500 l/h
Suitable for ponds up to max.: 70 m3
Suitable for ponds with fish stock: 40 m3
Suitable for ponds with koi: 25 m3
Material: Plastic / stainless steel
Connection to: ProfiClear, AquaMax Eco Gravity
Type of use: Pump fed system, Gravity fed system
Other: Opt. Function check


Download Documents

Brochure: Bitron Gravity 55 W

Manual: Bitron Gravity 55W
