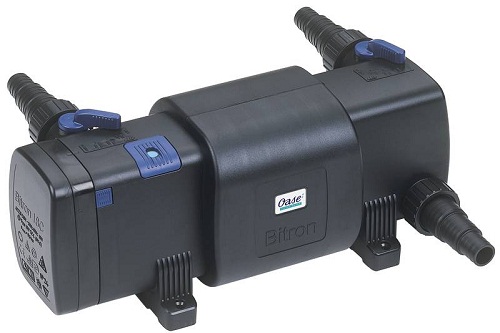

Bitron C 24 W

15,690,000

Order no.: 56804
Power consumption: 24 W

SKU: 56804 Category: Tags: ,

Product characteristics
Elimination of suspended algae (green water)
Reduction of harmful bacteria and pathogen levels
Clever UVC function monitor, display for bulb change and water temperature
Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
Individual water flow adjustment for optimal adaptation to the connected filter pump
Integrated magnets protect the UVC technology against limescale deposits
Visual function check of the UVC bulb
100 %, VDE-certified safety; does not cause eye injuries
Quick release technology for easy bulb replacement
High-quality workmanship with impact resistant plastic housing
Incl. high quality UVC bulb
Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear

Warranty: 1 year

Specifications

Order no.: 56804
Dimensions(LxWxH): 440x180x198 mm
Rated voltage: 220 – 240 V / 50/60 Hz
Power consumption: 24 W
Power cable length: 5 m
Net weight: 3,5 kg
UVC power: 24 W
Temperature display: No
Bypass control: manually
UVC operating hours meter: No
Number of inlets: 1 ST
Connection inlet: 25 / 32 / 38 mm
Connection inlet: 1″, 1 1/4″, 1 1/2″
Number of outlets: 2 ST
Connections, outlet: 25 / 32 / 38 mm
Connections, outlet: 1″, 1 1/4″, 1 1/2″
Min. flow rate: 4000 l/h
Max. flow rate: 15000 l/h
Max. operating pressure: 0,5 bar
Suitable for ponds up to max.: 25 m3
Suitable for ponds with fish stock: 12,5 m3
Suitable for ponds with koi: 6,5 m3
Connection to: BioSmart 18000/36000
Other: Opt. Function check

Pictures

Product Videos

Download Documents

Brochure: Bitron C 24 W
Manual: UVC Bitron C
