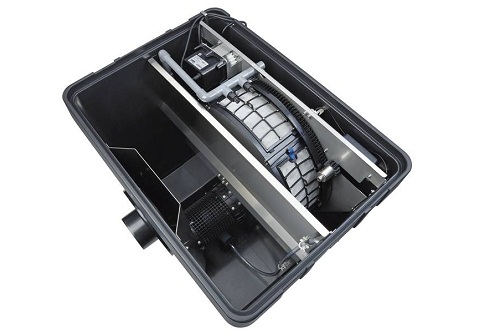

ProfiClear Premium Compact-M pumped EGC

135,680,000

Order no.: 47008
size: 885L x 685W x 820H

Product characteristics
Compact and self-cleaning drum filter unit for ponds up to 80 m³
Inexpensive alternative for smaller ponds, particularly koi ponds
Available in the pump-fed principle and in the gravity-fed principle
With the Moving Bed System for optimal water movement and cleaning of the water
High separating capacity through deep-bed filtration of up to 80 microns
New Hel-X 13 with significantly enlarged surface for effective decomposition of nutrients and pollutants
Lower installation height also enables gravity-fed systems where space is limited
New pump chamber for combination with Bitron Gravity UVC clarifier. Also compatible with ProfiClear Classic modules

Warranty: 1 year

Specifications

Order no.: 47008
Dimensions(LxWxH): 885x685x820 mm
Rated voltage: 230 V/ 50 Hz
Power consumption: 5 W
Power consumption cleaning: 870 W
Cable length: 5.00 + 1.00 m
Net weight: 79,5 kg
Control unit: Microcontroller
Temperature display: Digital
Coarse debris extraction: 80 MIM
Number of nozzles/ cleaning flow rate: 2 x 3.5 l/min
Scavenging pump: 4 bar
Automatic self cleaning: Sensor
Material: GRP Duroplast/stainless steel
Biological filter surface: 38,2 m2
Biological filter surface protected: 32,2 m2
Number of inlets: 2 ST
Connection inlet: 50 mm
Connection to: AquaOxy 2000
Number of outlets: 1 ST
Connections, outlet: DN 110
Connections, sludge discharge: DN 110
Connection mud drain: DN 75
Min. flow rate: 7500 l/h
Max. flow rate: 12500 l/h
Suitable for ponds up to max.: 80 m3
Suitable for ponds with fish stock: 40 m3
Suitable for ponds with koi: 20 m3
Type of use: Pump fed system
Installation height above water level: 32 cm

Pictures

Videos

Download Documents

Brochure: ProfiClear Premium Compact-M pumped EGC

Manual: ProfiClear Premium Compact-M pumped EGC
