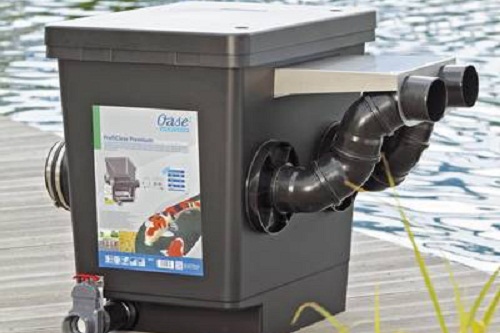

ProfiClear Moving Bed Module

Order no.: 50772
Dimensions: 830Lx600Wx820H (mm)

Product characteristics

  • Extremely large, protected settlement surface for microorganisms (704 m²/m³)
  • Innovative bypass technology for optimal movement of the Hel-X bio-elements even at high flow rates
  • Removal of toxins, such as ammonium / ammonia, nitrite and nitrate
  • Hel-X Biomedium: 50 l decompose approx 340 g of fish food per day. Its performance depends on temperature, feed quality and degree of settlement of microorganisms
  • Aerator bar for optimal oxygen enrich-ment and turbulence already installed
  • Advantages of the moving bed process: Permanent, optimal oxygen supply; self-cleaning effect from dead biomass, know-how from industrial water treatment
  • Integrated sludge drain with high-quality, finely engineered slide valve

Warranty: 1 year

Specifications

Order no.: 50772
Dimensions (L x W x H): 830x600x820 mm
Net weight: 44 kg
Temperature display: No
Material: GRP Duroplast
Number of inlets: 2 ST
Connection inlet: 180 mm
Connection inlet: 180 mm
Number of outlets: 2 ST
Connections, outlet: DN 150
Connections, sludge discharge: DN 75
Connection to: AquaOxy CWS 2000 – 4800
Installation height above water level: 13 cm
Pos. water level difference: 100 mm
Type of use: Pump fed system, Gravity fed system
Other: incl. 50l Hel-X 13 Biomedia, Pollutant discharge incl. slide valve, Aeration pre-installed

Pictures

Product Videos

Download Documents

Brochure: ProfiClear Moving Bed Module
