Product characteristics

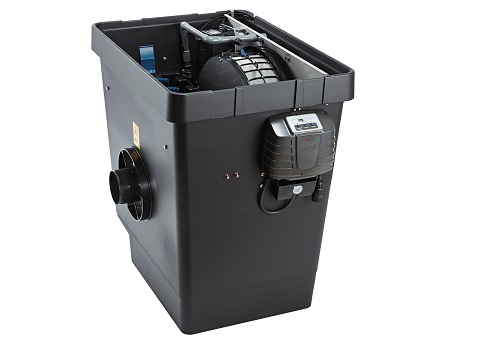

Intelligent filter system for near-natural ponds up to 80 m³ and fish ponds up to 40 m³

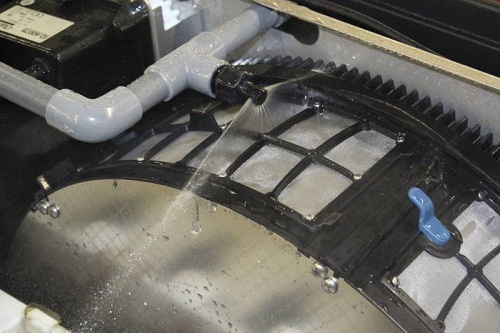

The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
Long service life and high quality filter sponges offer the best conditions for the filter biology
Outstanding filter capacity with intelligent control functions
A watertight microcontroller system monitors and controls the main functions, operation is as easy as child’s play (plug & play)
The filter is flushed only with cleaned pond water. Therefore a fresh water connection is not required.
Powerful, high-quality pressure pump is integrated for flushing the drum
Particularly quiet in operation thanks to extensive noise insulation
Excellent filtration capacity to 125 µm and flow-through rates up to 12,500 l/h for a crystal clear view
Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum interior
Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
Less string algae through continuous removal of phosphates and nutrients
Pollutant discharge incl. slide valve
Innovative and reliable product »made in Germany*« (*except pressure pump)

Warranty: 1 year

Thông số kĩ thuật

Order no.: 54850
Dimensions(LxWxH): 830 x 675 x 820 mm
Power consumption: 5 W
Power consumption cleaning: 670 W
Cable length: 5.00 + 1.00 m
Net weight: 71.5 kg
Control unit: Microcontroller (MCU)
Temperature display: Digital
Coarse debris extraction: 125 MIM
Number of nozzles / cleaning flow rate: 1 x 4.0 l/min
Scavenging pump: 4 bar
Automatic self cleaning: Manually, Time interval, Sensor
Material: GRP Duroplast/stainless steel
Number of blue filter foams: 2 ST
Number of red filter foams: 2 ST
Number of purple filter foams: 2 ST
Number of inlets: 1 ST
Connection inlet: 1 x 2″ + Bitron
Connection to: ProfiClear Classic, Bitron Eco 120 – 240 W, Bitron C 36 – 110 W
Number of outlets: 1 ST
Connections, outlet: DN 110
Connections, sludge discharge: DN 75
Connection mud drain: DN 110
Min. flow rate: 7500 l/h
Max. flow rate: 12500 l/h
Suitable for ponds up to max.: 80 m3
Suitable for ponds with fish stock: 40 m3
Suitable for ponds with koi: 20 m3
Installation height above water level: 51 cm

Hướng dẫn sử dụng: Bio Tec Premium 80000

Hình ảnh sản phẩm

Download Tài liệu

Brochure: BioTec Premium 80000
