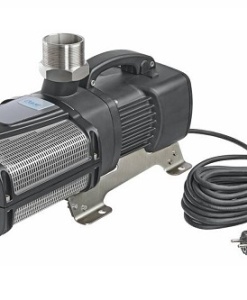

Varionaut 150/DMX/02

Order no.: 57690
Power max.: 130W

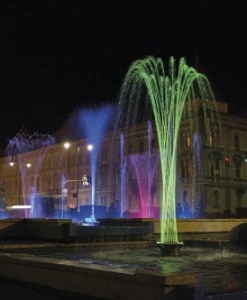

The 230 Volt alternating current version of the Varionaut manages to connect to a Comet 10-12 T shoot to height of up to 3.50 m. Any single pump can be individually regulated and controlled by the DMX connection. With this dynamic water effects can be created easily.The Varionaut 150/DMX/02 (50343) comes witha power connection cable of 10 m and a DMX cable of 1 m With these special connection boxes, hand wiring is no longer necessary. This IP 68 waterproof, patented connection system makes the installation safer, easier and faster. Spotlights and other consumer loads (eg. LED spotlights) can easily be connected to the DMX of the pump.

The Varionaut 150/DMX/02 has a power consumption of 130 W and a power supply of AC 220-240V 50/60Hz.

Product characteristics at a glance
• 230V/AC fountain pump with alternating current for the application indoor and outdoor
• Suitable for wet or dry installation
• Power consumption of max. 130 W
• 10m power cable with plug and 1m DMX cable with DMX box (50343)
• IP 68 rated
• RDM-DMX capable

Warranty: 1 year

Specifications

Order no.: 57690
Motor Type/Electronic: 230V EC-Motor, DMX controlled(DMX-RDM enabled)
Hmax.: 18 ft
Qmax.: 2400 gph
Power max.: 130W
Nominal current: 1.37 A
Dynamic behavior speed: (time to reach full fountain height from 0-100%) with comet 5-8 : 1 s
Qmin.(offset mode – DMX 0 ): 380.4 gph
Max. Powering up/min. Off time: 1 x perminute /10 s
Nominal voltage: 220-240,50/60 V/Hz
Immersion depth max.: 13.10 ft
Protection class: IP68
Dimensiond incl. filter: 12.20 x 6.30 x 6.20 inch
Suction side connection: Thread G 1 ½ inch
Pressure side connection: Thread G 1 ½ inch
Weight: 11lb
Filter housing: plastic /stainless steel 1.4301(AISI 304)
Input DMX: 1m BUS cable with DMX box
Input power: 10m power cable with power box
Number of DMX channels: 2 channels (control channel, speed channel)
Emvironmental conditions: submersible Application: Water temperature: Min. 4 to max. 35°C
Emvironmental conditions: Ambient temperature : Max. 30°C with natural convection, max. 40 with forced convection, no direct sun exposure permitted


Download Documents

Brochure: Varionaut 150/DMX/02
