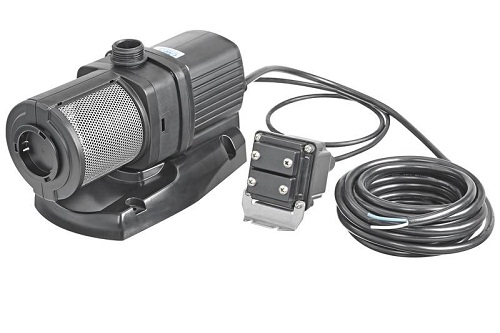

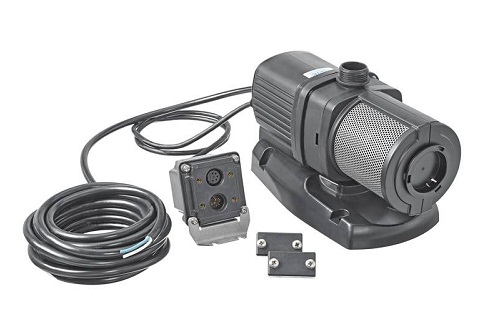

Varionaut 1/A/DMX/01

Order no.: 50309
Power max.: 60 W

A 24 V/DC indoor and outdoor fountain pump which is suitable for underwater application directly below the nozzles. It fulfills the national regulations of DC current up to 30 V. Any single pump can be individually regulated and controlled via the DMX connection. That way dynamic water effects can be created easily.
The Varionaut 90 itself produces water displays of up to 2.00 m height in combination with Comet 5-8 Silver nozzles. It comes with a high- quality stainless steel filter housing, along with 2 connection boxes for the 24 V power supply (only the Varionaut 90) and DMX data source. Through this special connection technology, wiring by hand is no longer necessary. This IP 68 waterproof, patented connection system makes the installation safer, easier and faster. Spotlights and other consumer loads (e.g. LED spotlights) can be connected easily to DMX/RDM of the pump.

Product characteristics at a glance :
• 24 Volt DC continuous current indoor and outdoor fountain pump
• Can be placed directly below the nozzles in the water as DC up to 30V/DC is approved by national
regulations
• Suitable for wet or dry installation
• Power consumption of max. 60 W
• Reverse polarity protection
• 1 m power cable with power box (only 50136) and 1 m DMX cable with DMX box
• Frost protected up to -20° C
• IP 68 rated

Warranty: 1 year

Specifications

Order no.: 50309
Motor Type/Electronic: 24V DC-Motor, DMX controlled
Hmax.:  7.7 ft
Qmax.: 1450 gph
Power max.: 60 W
Nominal current: 2.5 A
Dynamic behavior speed: (time to reach full fountain height from 0-100%) with comet 5-8 : 0.6s
Qmin.(offset  mode – DMX 0 ): 412 gph
Max. Powering up/min. Off time: 1 x perminute /10 s
Nominal voltage: 24 V/DC
Immersion depth max.: 13.10 ft
Protection class: IP68
Dimensiond incl. filter: 10.60 x 5 x 6.70 (inch)
Suction side connection: thread G 1 ½inch(external thread)
Pressure side connection: thread G 1 inch ( external thread)
Weight: 8 ib
Filter housing: plastic /stainless steel 1.4301(AISI 304)
Input DMX: 3ft  BUS cable with DMX box
Input power: 20ft power cable with power box
Number of DMX channels: 2 channels (control channel , speed channel)
Emvironmental conditions: submersible application: water temperature: min. 4 to max. 35°C
Emvironmental conditions: dry application : Ambient temperature: max. 30 with natural convection , max. 40 with forced convection, no direct sun exposure permitted


Download Documents

Brochure: Varionaut 1 /A/DMX/01
