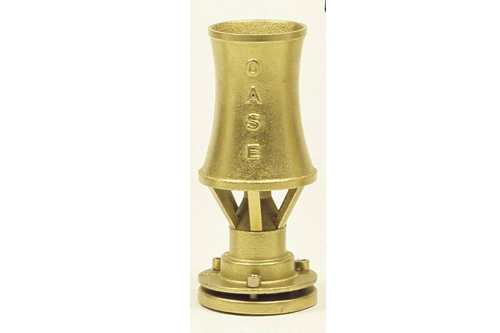

Cascade 90 T

Order no.: 50915/NPT 89053
Dimensions: 125Ø x 294H (mm)

SKU: 50915/ NPT 89053 Category: Tags: , , ,

These injector nozzles generate a lively full water pattern that changes depending on the water level and accentuates every public area.
Thanks to the injector effect, water and air are suctioned in, mixed intensively and accelerated into the air by the injector jet as an impressive soft flowing fountain. In this process a voluminous fountain that forms a point is generated with relatively low pump capacities.
The foam effect nozzles work depending on the water level; they generate a slender and higher water pattern if the normal water level is not reached. If the normal water level is exceeded the water pattern is fuller and lower.This effect is particularly interesting when there are strong wave movements; then the fountains really start to dance. In installations with a different water level, non return valves should be provided, otherwise the water level will drop to injector height once the installation is switched off.

Product characteristics at a glance
• Lively water effect
• Foam/spume effect
• Offers oxygen enrichment
• Adjusting flange for alignment
• Water pattern is water level dependent

Warranty: 2 years

Specifications

Order no. NPT: 89053
Order no.: 50915
Dimensions: 125Ømm x 294Hmm
Fountain height: 0.75-10 m
Material: Tombac
Weight: 3.6 kg


Download Documents

Brochure: Cascade 90 T
