AquaMax Dry 14000

25,440,000

Order no.: 50068
Power consumption: 230 W

SKU: 50068 Category: Tags: , ,

Product characteristics
Powerful filter pump for installation in a dry, separate, pump chamber
Extremely quiet motor operation
Displaces coarse debris to 8 mm in size
Extremely stable thanks to its solid base

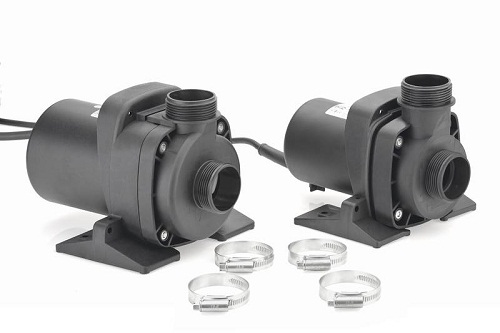

Included in the scope of delivery: 2 hose connections, as well as 2 stainless steel hose clamps
Suitable for use on swim ponds and bathing ponds (inserted in an exterior pump chamber)

Warranty: 1 year

Specifications

Order no.: 50068
Dimensions(LxWxH): 210x150x170 mm
Rated voltage: 220 – 240 V / 50 Hz
Power consumption: 230 W
Power cable length: 10 m
Net weight: 5 kg
Max. flow rate: 225 l/Min
Max. flow rate: 13500 l/h
Max. head height: 5 m
Connection pressure-side: 38 mm
Connection pressure-side: 1 1/2″
Connection sunctions-side: 38 mm
Connection sunctions-side: 1 1/2″
Connection for hoses: 25 / 32 / 38 mm
Connection for hoses: 1″, 1 1/4″, 1 1/2″
Coarse debris displacement max.: 8 mm
Electronically adjustable: Yes
Setup type: Dry installation only

Pictures

Download Documents

Brochure: AquaMax Dry 14000
