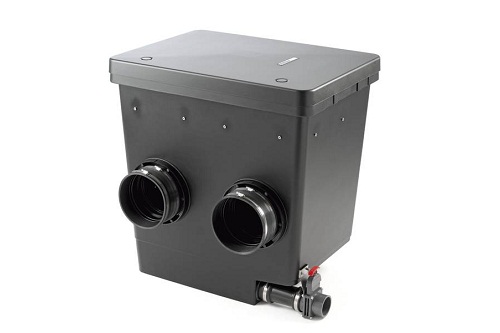

ProfiClear Individual Module

Order no.: 50771
Dimensions: 830Lx600Wx820H (mm)

Product characteristics

  • To increase filter capacity, space-saving integration of: AquaMax Gravity filter pumps and Bitron Gravity UVC clarifiers
  • Convenient filling of the 2 individual baskets in the flow area with up to 8 litres fill volume
  • Integrated sludge drain with high-quality, finely engineered slide valve

Warranty: 1 year

Specifications

Order no.: 50771
Dimensions(L x W x H): 830x600x820 mm
Net weight: 37 kg
Number of sieve elements: 2 ST
Material: GRP Duroplast/stainless steel
Number of inlets: 2 ST
Connection inlet: 180 mm
Connection inlet: 180 mm
Number of outlets: 2 ST
Connections, outlet: 2 x 2″ / 2 x DN 110
Connections, sludge discharge: DN 75
Connection to: Bitron Gravity, AquaMax Eco Gravity
Pump capacity, max.: 25000 l/h
Installation height above water level: 13 cm
Type of use: Pump fed system, Gravity fed system
Other: Pollutant discharge incl. slide valve

Pictures

Product Videos

Download Documents

Brochure: ProfiClear Individual Module
