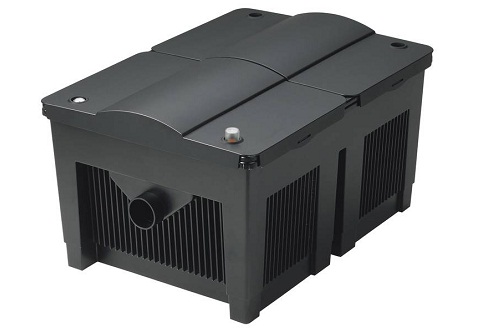

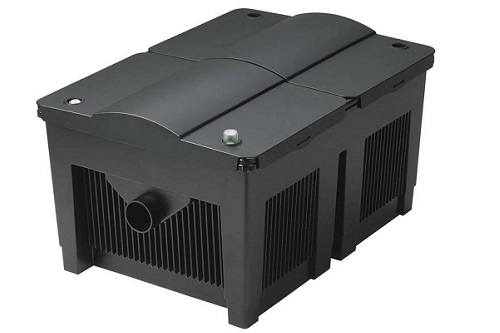

BioSmart 36000

14,390,000

Order no.: 56641
Dimensions: 767Lx555Wx408H (mm)

Product characteristics
Can be optimally combined with the Bitron C 24-36 W, and the Vitronic 18-36 W UVC clarifiers
Additional oxygen enrichment through special water channelling
Cleaning handles for convenient maintenance
Including displays for pollutant level and water temperature
Sludge drain for easy removal of coarse debris

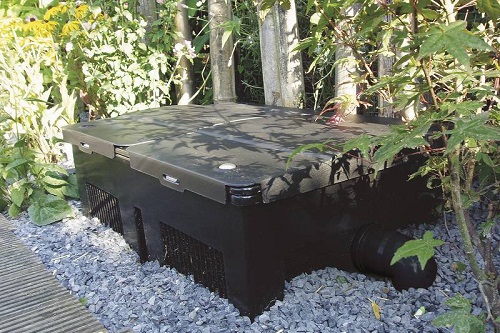

Easy to conceal; the filter housing can be recessed into the ground to ? of its height
Optimally matched to the OASE AquaMax filter and watercourse pumps

Warranty: 1 year

Specifications

Order no.: 56641
Dimensions(LxWxH): 767x555x408 mm
Net weight: 10,7 kg
Number of filter foams, total: 9 ST
Number of blue filter foams: 4 ST
Number of red filter foams: 4 ST
Number of green filter foams: 1 ST
Temperature display: Yes
Connection inlet: 25 / 32 / 38 mm
Connection inlet: 1″, 1 1/4″, 1 1/2″
Connections, outlet: DN 75
Connections, sludge discharge: DN 50
Max. flow rate: 8000 l/h
Suitable for ponds up to max.: 36 m3
Suitable for ponds with fish stock: 18 m3
Suitable for ponds with koi: 9 m3



Pictures

Product Videos


Download Documents

Brochure: BioSmart 36000

Manual: Bio Smart 36000
