Product characteristics
For big bodies of water: Pumps 28000 litres of water per hour
For the coarse: Pumps contamination particles to 40 mm in diameter
Secure stance: Robust stainless steel base
Robust: Ergonomic handle with stainless steel reinforcement
Solid: High-quality and robust stainless steel housing
Powerful: Generously-dimensioned motors
Reliable: Proven seal set with oil chamber
Specifications
Order no.: 42270
Flow rate Q max.: 28000 l/h
Delivery head H max.: 12 m
Pressure max.: 1,2 bar
Power consumption: 1500 W
Rated voltage: 230 V / 50 Hz
Immersion depth max.: 7 m
Particle size max.: 40 mm
Automatic function: Float switch
Connection pressure-side: 2″
Power cable length: 10 m
Net weight: 14,1 kg
Dimensions(LxWxH): 178x246x453 mm
Pictures
-

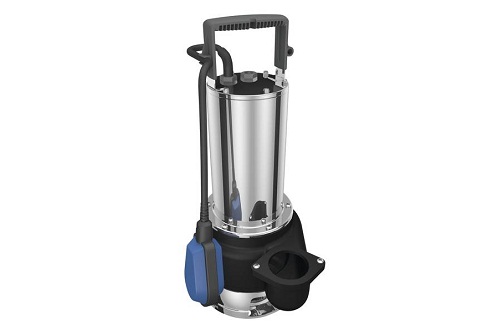

- ProMax MudDrain
-

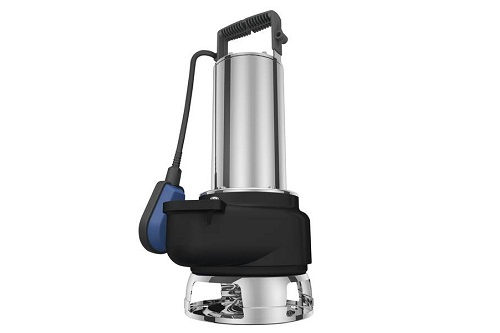

- ProMax MudDrain
-
- ProMax MudDrain
Product Videos
Download Documents
Brochure : ProMax MudDrain
