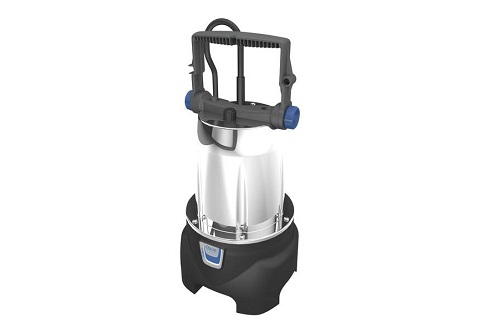

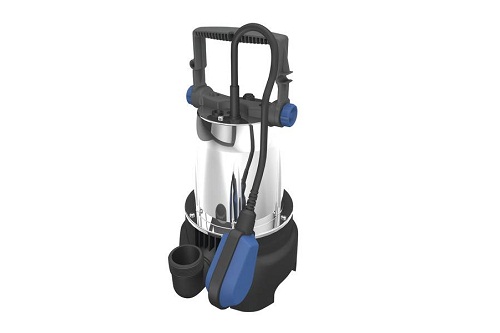

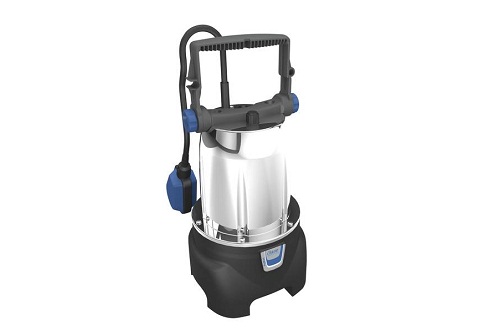

ProMax MudDrain 11000

Order no.: 42267
Net weight: 6,8 kg

SKU: 42267 Category: Tags: ,

Product characteristics
Robust and reliable: Automatic pump switchon and switch-off through the float switch
Well-protected: Ceramic-coated stainless steel shaft
Versatile: Adjustable handle
Solid: High-quality and robust stainless steel housing
Easy to connect: Incl. 90° bend and stepped adapter
Powerful: Generously-dimensioned motors
Secure stance: Minimal start-up pulses thanks to pressure port positioned along the central axis

Warranty: 1 year

Specifications

Order no.: 42267
Flow rate Q max.: 11500 l/h
Delivery head H max.: 7 m
Pressure max.: 0,7 bar
Power consumption: 625 W
Rated voltage: 230 V/ 50 Hz
Immersion depth max.: 7 m
Particle size max.: 30 mm
Automatic function: Float switch
Connection pressure-side: 1 1/2″
Power cable length: 10 m
Net weight: 6,8 kg
Dimensions(LxWxH): 193x247x422 mm

Pictures

Product Videos

Download Documents

Brochure : ProMax MudDrain
