Product characteristics
Optimal thermal dissipation even at low water level thanks to the design that ensures water flows around the motor housing
Reliable float switch and provided connection accessories enable fast and easy start-up of the pump
Specifications
Order no.: 47746
Q max.: 6000 l/h
H max.: 6 m
Pressure max.: 0,6 bar
Power consumption: 220 W; 0,3Hp
Immersion depth max.: 7 m
Particle size max.: 5 mm
Automatic function: Float switch
Connection pressure-side: 1 ¼”
Power cable length: 10 m
Protection class: IP X8
Net weight: 4,8 kg
Dimensions(LxWxH): 178 x 237 x 337 mm
Pictures
-

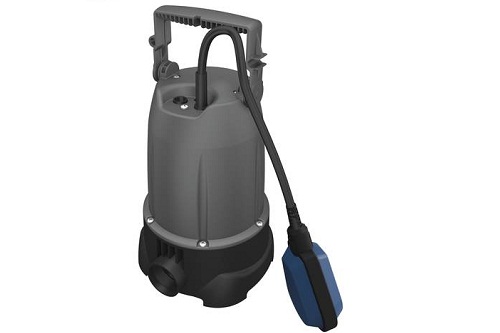

- ProMax ClearDrain 6000
-

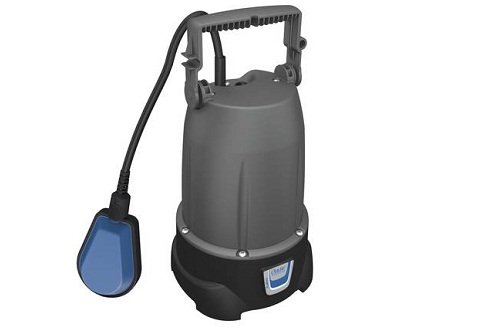

- ProMax ClearDrain 6000
-

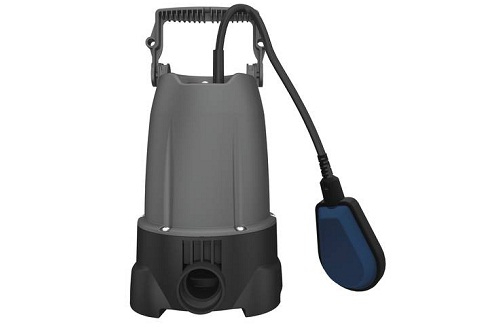

- ProMax ClearDrain 6000
Download Documents
Brochure : ProMax ClearDrain
