Product characteristics
Pumps down to the last millimetre: Shallow-priming to a water level of 1 mm, thanks to a base adapter with bayonet fitting
Well-protected: Ceramic casing protects the stainless steel shaft from groove formation and thus prevents water in the motor
Sustainable: High-quality and robust stainless steel housing
Full power: Generously sized motors for reliable pump operation and effective heat distribution
Versatile: Adjustable handle
Variable and space saving: Flattened water sensor with large contact surface
Quiet operation: Low-vibration and quiet
Optimal footprint: Suitable for narrow shafts up to 20 x 20 cm, and highly stable at the same time
Specifications
Order no.: 42261
Flow rate Q max.: 11500 l/h
Delivery head H max.: 8 m
Pressure max.: 0,8 bar
Power consumption: 650 W
Rated voltage: 230 V/ 50 Hz
Immersion depth max.: 7 m
Particle size max.: 5 mm
Flat suction up to: 1 mm
Automatic function: Sensor
Connection pressure-side: 1 1/4″
Power cable length: 10 m
Net weight: 6,9 kg
Dimensions(LxWxH): 193x197x393 mm
-

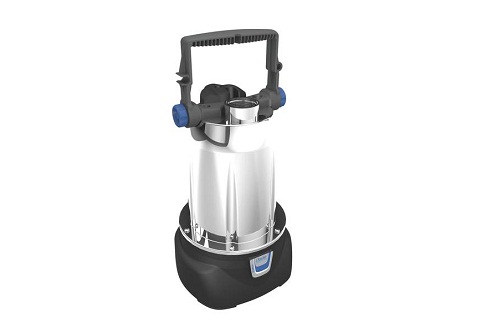

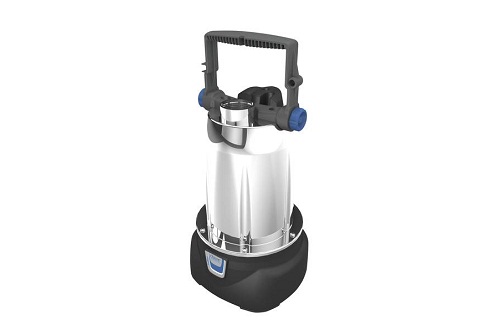

- ProMax ClearDrain 11000
-
