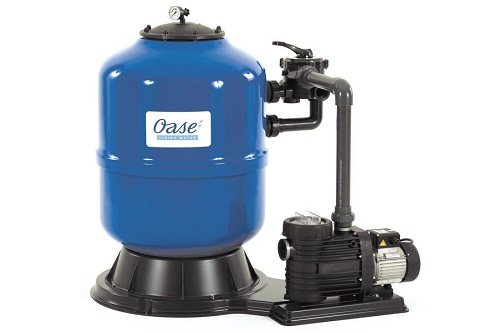

Sand filter D 600

Order no.: 50431
Power consumption: 970 W

SKU: 50431 Category: Tags: ,

Product characteristics

  • Efficient, mechanical water filtration
  • Extends the cleaning intervals
  • Environmentally-friendly mechanical filtration
  • Pre-assembled, easy-to install unit comprised of filter, pump, and multi-port valve
  • Easy to clean

Warranty: 1 year

Specifications

Order no.: 50431
Dimensions(L x W x H): 1000 x 870 x 1100 mm
Filter tank diameter: 630 mm
Filter surface: 0,28 m2
Recirculation capacity at 8 m wc: 13 M/H
Filter speed at 8 m wc: 50 M/H
Reverse rinse speed: 50 M/H
Reverse rinse duration: ca. 2 – 4 Min.
Water requirement per reverse rinse: ca. 650 l in 3 Min.
Quantity of the filter material: ca. 125 kg
Max. operating pressure: 2,5 bar
Connection pressure-side: 50 mm
Connection pressure-side: 1 1/2″
Connection – back-flush: 50 mm
Connection value, backflush line: 1,5
Power consumption: 970 W
Rated current: 4,7 A
Rated voltage: 230 V
Frequency: 50 Hz
Protection class: IP X4
Net weight: 46 kg
Material filter: GRP
Material pump: PP TV 20/PP TV 40


Download Documents

Brochure: Sand filter D 600
