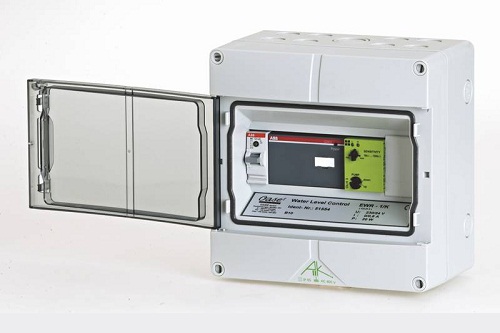

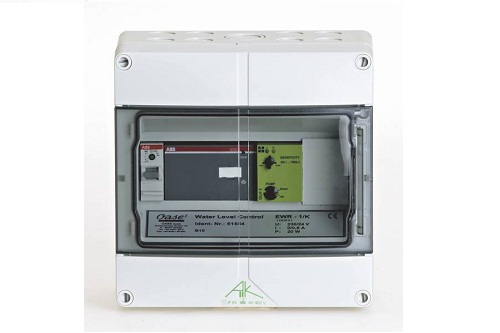

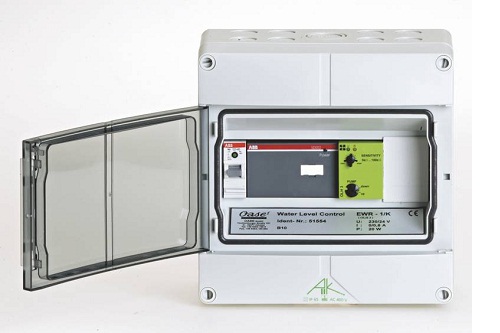

Electronic water level control 1

Order no.: 51554
Dimensions: 180Lx180Wx124H (mm)

The EWR water-level regulator can be used for electronic water-level monitoring, and consequently for automatic top-up infeed of pool water, but it can also be used to switch off pump systems in the event of dry run.

Product characteristics at a glance
• Electronically monitoring of water level
• Automatic top-up infeed of pool water
• Automatic switch off of pump technology when using water-level sensors incl. dry-run protection electrode

Warranty: 1 year

Specifications

Order no.: 51554
Dimensions: 180Lx180Wx124H mm
Housing: plastic
Protection class: IP 54
Voltage[V/Hz]: 100 – 240 V/ 50 – 60 Hz
Solenoid valve:  230V/50 Hz, 5,0A
Solenoid valve: 24 V/DC , 0.5 A
Pump: 230V/50 Hz
Switch/Button: 1
Indicator lights: 1
Connections for electrodes: 3
Dry-run protection: no
Alarm monitoring: no
Weight: 2.1kg


Download Documents

Brochure: Electronic water level control 1
