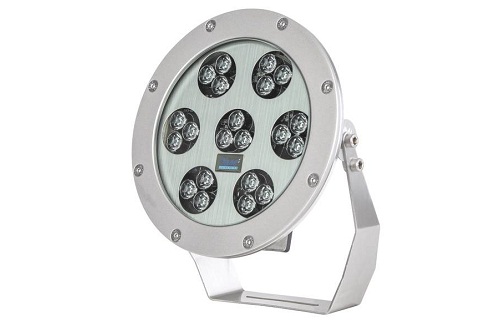

ProfiLux LED Spot 2200/01

Item no.: 56401
Dimensions: 188Øx156H(mm)

Product characteristics

  • Energy-efficient neutral white LED spotlight with holding bracket and fine adjustment
  • 2683 lumens with a beam angle of 11°, max. 55 watt
  • Colour temperature 4000 K
  • 24

    V DC plug connection with 4 m cable, watertight in accordance with IP 68, easy to connect

  • Reverse polarity protection
  • Temperature-controlled, high-quality LED for a particularly long service life of up to 100,000 hours* *In submersed installation, through intelligent heat management and through the use of a quality brand LED, an LED service life of up to 100,000 h is possible. This claim is not relevant for the guarantee.
  • Wet and dry installation
  • For fresh water, pool water and sea-water
  • Compact design (Ø x h) 188 x 36 [mm]
  • Can be controlled via DMX/RDM with underwater switch 24 V DC (on/off)

Warranty: 1 year

Specifications

Item no.: 56401
Luminous flux withe: 2683 lm
Color temperature LED white: 4000 K
Colour rendering index(CRI): 80%
Half peak angle: 11 Degrees
Rated voltage: 24 V DC
Power consumption: 55 W
Dim frequency: 2800 Hz
Power connection type: 1 box
Protection class: IP 68
Dimensions (Ø x H): 188 x 156 mm
Material: Stainless steel
Net weight: 3.18 Kg


Download Documents

Brochure: ProfiLux LED Spot 2200/01
