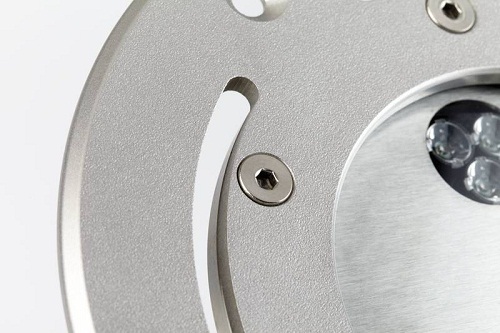

ProfiPlane LED 320 /DMX/02

Item no.: 50719
Dimensions: 188Øx30H (mm)

Product characteristics

  • Energy-efficient LED RGB spotlight with flange and a 22 mm diameter opening
  • Can be walked on
  • Spotlight/nozzle holder
  • 573 lumens with a beam angle of 16°, max. 16 watt
  • Temperature-controlled, high-quality LED for a particularly long service life of up to 100,000 hours* *In submersed installation, through intelligent heat management and through the use of a quality brand LED, an LED service life of up to 100,000 h is possible. This claim is not relevant for the guarantee.
  • Wet and dry installation-watertight, IP 68 protection rating
  • For fresh water, pool water and sea-water
  • External electronics in a separate control box / connection box-watertight plug connection, easy to connect
  • RDM-DMX capable for underwater LED Driver/DMX/02 (50720)
  • Uniform colour mixes guaranteed with the underwater LED DriverDriver/DMX/02 (50720), through the brightness measurement of the individual LEDs
  • Galvanic isolation between DMX and 24 V DC

Warranty: 1 year

Specifications

Item no.:50719
Luminous flux all on: 573 lm
Luminous flux red: 172 lm
Luminous flux green: 307 lm
Luminous flux blue: 94 lm
Half peak angle: 16 Degrees
Stroboscope effect: No
Rated voltage: 24 V DC
Power consumption: 16 W
Dim frequency: 500 Hz
Power connection type: Hybrid plug
Power cable length: 1m
Protection class :IP 68
Dimensions(Ø x H): 188 x 30 mm
Material: Stainless steel
Net weight: 1.6 kg


Download Documents

Brochure: ProfiPlane LED 320 /DMX/02
