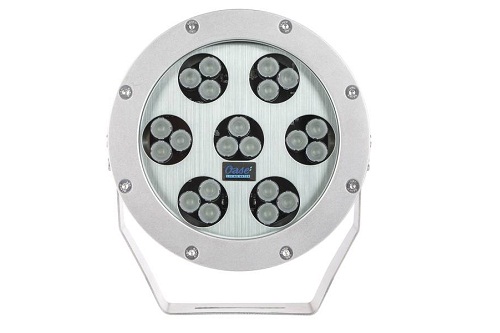

ProfiLux LED Flood 1500 /DMX/02

Item no.: 56391
Power consumption: 32 W

Product characteristics

  • Energy-efficient LED RGBW spotlight with holding bracket and fine adjustment
  • 1263 lumens with a beam angle of 11°, max. 32 watt
  • Temperature-controlled, high-quality LED for a particularly long service life of up to 100,000 hours* *In submersed installation, through intelligent heat management and through the use of a quality brand LED, an LED service life of up to 100,000 h is possible. This claim is not relevant for the guarantee.
  • Wet and dry installation-watertight, IP 68 protection rating
  • For fresh water, pool water and sea-water
  • External electronics in a separate control box / connection box – watertight plug connection, easy to connect
  • RDM-DMX capable for underwater LED Driver/DMX/02 (50720)
  • Uniform colour mixes guaranteed with the underwater LED DriverDriver/DMX/02 (50720), through the brightness measurement of the individual LEDs
  • Galvanic isolation between DMX and 24 V DC
  • Stroboscope effect

Warranty: 1 year

Specifications

Item no.: 56391
Luminous flux all on: 1263 lm
Luminous flux red: 284 lm
Luminous flux green: 509 lm
Luminous flux blue: 156 lm
Luminous flux withe: 313 lm
Colour temperature LED white: 4000 lm
Colour rendering index (CRI): 80 %
Half peak angle: 31 Degrees
Stroboscope effect: yes
Weighted energy consumption: 35 kWh/th
Rated voltage: 24 V/DC
Power consumption: 32W
Dim frequency: 2800 Hz
Power connection type: 1 box
Protection class: IP 68
Dimensions (Ø x H): 188 x 156 mm
Material: Stainless steel
Net weight: 3,15 kg


Download Documents

Brochure: ProfiLux LED Flood 1500 /DMX/02
